SAFT

SAFT公司是世界领先的设计和制造技术先进电池工业技术的锂离子电池,SAFT在可再生能源储存、运输和电信网络市场产品。

LSH20

Lithium-sulfur dioxide (Li-SO2) : LO/G cell ranges
  G04/3 G06/2 G32/3 G36/2 LO34SX
Size AA AA 2/3 A "Long" A 1/3 C
Open Circuit Voltage 3 V 3 V 3 V 3 V 3 V
Nominal Voltage 2.8 V 2.8 V 2.8 V 2.8 V 2.9 V
Nominal capacity (drain) 0.45 Ah?(50 mA) 0.95 Ah?(80 mA) 0.8 Ah (80 mA) 1.7 Ah (80 mA) 0.86 Ah (80 mA)
Max. recom. Cont. Current 0.25 A 0.5 A 0.75 A 1.5 A 1.0 A
Operating temperature range -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C*
Outside diameter max 14.2 mm 14.2 mm 16.3 mm 16.3 mm 25.9 mm
Length max 27.9 mm 50.3 mm 34.5 mm? 57.7 mm? 20.3 mm?
Weight 8 g 15 g 12 g 18 g 18 g
Transport Non restricted Non restricted Non restricted Non restricted Non restricted

  LO35SX G52/3 LO29SHX G54/3 LO43SHX
Size 2/3 C C C 5/4 C 5/4 C
Open Circuit Voltage 3 V 3 V 3 V 3 V 3 V
Nominal Voltage 2.8 V 2.8 V 2.8 V 2.8 V 2.8 V
Nominal capacity (drain) 2.2 Ah (650 mA) 3.2 Ah (1.0 A) 3.75 Ah (0.25 A) 5.0 Ah (0.2 A) 5.0 Ah (0.2 A)
Max. recom. Cont. Current 2.0 A 2.5 A 2.5 A 2.5 A 2.5 A
Operating temperature range -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C*
Outside diameter max 25.9 mm 25.6 mm 25.6 mm 25.6 mm 26.0 mm
Length max 35.9 mm 49.5 mm 50.4 mm 60.2 mm 59.2 mm
Weight 30 g 47 g 40 g 58 g 53 g
Transport Non restricted Class 9 Class 9 Class 9 Class 9


  LO40SX LO30SHX G26 LO26SX LO26SHX
Size 2/3 "Thin" D "Thin" D D D D
Open Circuit Voltage 3 V 3 V 3.0 V 3.0 V 3.0 V
Nominal Voltage 2.8 V 2.8 V 2.8 V 2.8 V 2.8 V
Nominal capacity (drain) 3.5 Ah (0.12 A) 5.75 Ah (0.2 A) 7.75 Ah ??(0.25 A) 7.75 Ah?(0.25 A) 7.5 Ah (0.25 A)
Max. recom. Cont. Current 2.0 A 3.0 A 2.5 A 2.5 A 4.0 A
Operating temperature range -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C*
Outside diameter max 28.95 mm 29.1 mm 34.5 mm 34.2 mm 34.2 mm
Length max 42.29 mm 59.9 mm 59.8 mm? 59.3 mm 59.3 mm
Weight 40 g 63 g 85 g 85 g 85 g
Transport Class 9 Class 9 Class 9 Class 9 Class 9

  LO26SXC LO25SX LO39SHX G22/6 G62/1
Size D "Fat" D F DD "Long Fat DD"
Open Circuit Voltage 3.0 V 3 V 3 V 3 V 3 V
Nominal Voltage 2.8 V 2.8 V 2.8 V 2.8 V 2.8 V
Nominal capacity (drain) 9.2 Ah?(0.25 A) 8.0 Ah (0.27 A) 11.5 Ah (1 A) 16.5 Ah (0.5 A) 34.0 Ah (1.0 A)
Max. recom. Cont. Current 2.5 A 2.5 A 3.0 A 3.0 A 3.0 A
Operating temperature range -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C* -60/+70°C *
Outside diameter max 34.2 mm 39.5 mm 31.9 mm 33.3 mm 41.7 mm
Length max 59.3 mm 50.3 mm 100.3 mm 120.6 mm 141 mm
Weight 85 g 96 g 125 g 175 g 300 g
Transport Class 9 Class 9 Class 9 Class 9 Class 9

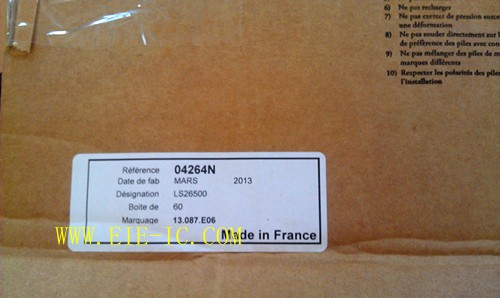

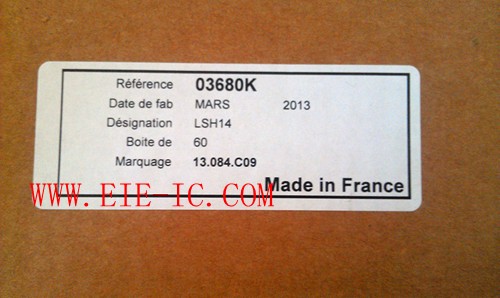

LSH14-SAFT ls26500-saft

Lithium-thionyl chloride (Li-SOCl2) : LSH cell range
  LSH14 LSH14 LSH20 LSH20-150
Cell type constuction C C D D
Open Circuit Voltage 3.67 V 3.67 V 3.67 V 3.67 V
Nominal Voltage 3.6 V 3.6 V 3.6 V 3.6 V
Nominal capacity (drain) 5.8 Ah (15 mA) 3.6 Ah (15 mA) 13.0 Ah (15 mA) 14.0 Ah (300 mA)
Max. recom. Cont. Current 1.3 A 1.3 A 1.8 A Consult Saft
Operating temp. range -60/+85°C * -60/+85°C * -60/+85°C * -40/+150°C
Outside diameter max 26.0 mm 26.0 mm 33.4 mm 32.05 mm
Length max 50.4 mm 50.4 mm 61.6 mm 61.7 mm
Weight 51 g 51 g 100 g 104.5 g
Transport Restricted
(Class 9)
Non-restricted Restricted
(Class 9)
Restricted
(Class 9)

Lithium-thionyl chloride (Li-SOCl2) : LS-W cell range
  LS14250W LS14500W
Cell type constuction ?AA AA
Open Circuit Voltage 3.67 V 3.67 V
Nominal Voltage 3.6 V 3.6 V
Nominal capacity (drain) 1.2 Ah (1 mA) 2.6 Ah (2 mA)
Max. recom. Cont. Current 20?mA 30 mA
Operating temp. range -60/+95°C* -60/+95°C*
Outside diameter max 14.55mm 14.65mm
Length max 25.15mm 50.3mm
Weight 8.9 g 16.7 g
Transport Non-restricted Non-restricted

Lithium-thionyl chloride (Li-SOCl2) : Li-SOCl2?civil battery packs
LS14250MLB LS9V Lithopack
Cell type constuction 1s1p LS14250 3s1p LS 14250 2s1p LS 14500
Open Circuit Voltage 3.67 V 11.0 V 7.3 V
Nominal Voltage 3.6 V 9.0 V 7.2 V
Rated capacity 1.2 Ah 1.2 Ah 2.6 Ah
Max. dimensions 16.8x28.6 mm 49.1x46.8x26.8 mm 56.6x31.6x17.3 mm
Typical weight 15 g 29 g 34 g
Typical applications Metering, Professional electronics Memory back-up, Metering Memory back-up

Lithium-thionyl chloride (Li-SOCl2) : LS cell range

BATTERY CHARACTERISTICS LS14250 LS14500 LS14500C LS14500Ex
Size ? AA ?AA AA AA
Open Circuit Voltage 3.67 V ?3.67 V 3.67 V 3.67 V
Nominal Voltage 3.6 V ?3.6 V 3.6 V 3.6 V
Nominal capacity (drain) 1.2 Ah (1 mA) ?2.6 Ah (2 mA) 2.7 Ah (2 mA) 2.6 Ah (2 mA)
Max. recom. Cont. Current 35 mA ?50 mA 25?mA 50?mA
Operating temperature range -60/+85°C* ?-60/+85C* -60/+70°C* -60/+85°C*
Outside diameter max 14.55 mm ?14.55 mm 14.65 mm 14.55 mm
Length max 25.15 mm ?50.3 mm 50.3 mm 50.3?mm
Weight 8.9 g ?16.7 g 16.2 g 16.7 g
Transport Non-restricted ?Non-restricted Non-restricted Non-restricted
Production site UK, F, PRC ?UK, F, PRC F UK, PRC

saft

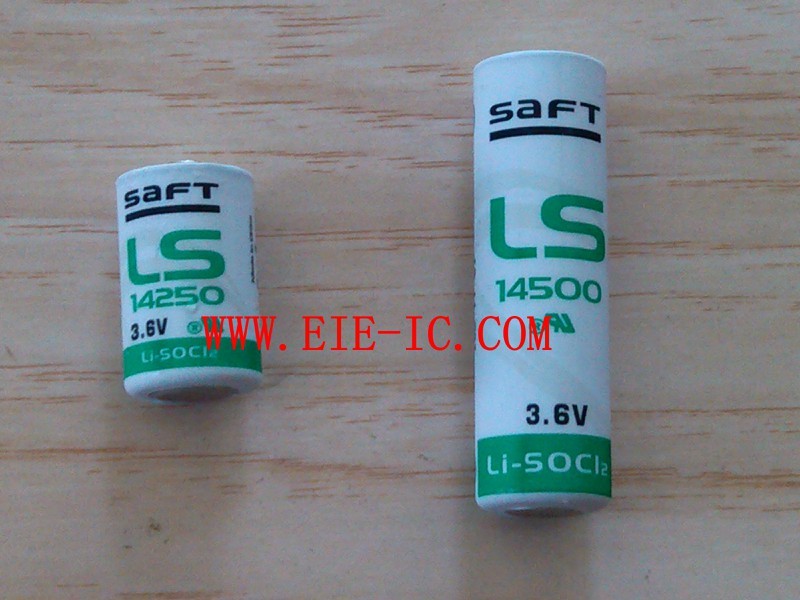

ls14500
LS17330 LS17500 LS26500 LS33600 LS33600C
2/3 A ?A C D D
3.67 V 3.67 V 3.67 V 3.67 V 3.67 V
3.6 V 3.6 V 3.6 V 3.6 V 3.6 V
2.1 Ah (3 mA) 3.6?Ah (3 mA) 7.7 Ah (4 mA) 17.0 Ah (5 mA) 18.5 Ah (1 mA)
25?mA 100?mA 150 mA 250 mA 80 mA
-60/+85°C* -60/+85°C* -60/+85°C* -60/+85°C* -60/+70°C*
16.55 mm 17.13 mm 26.0 mm 33.4 mm 33.4 mm
33.4 mm 50.9?mm 49.1 to 50.4 mm*** 60.2 to 61.6 mm*** 60.2 to 61.6 mm***
14.4?g 21.9?g 48 g 90 g 90 g
Non-restricted Non-restricted Restricted (Class 9) Restricted (Class 9) Restricted (Class 9)
UK F

Lithium-manganese dioxide (Li-MnO2) : LM/M cell ranges

LM spiral cells LM17130 LM22150 M49 M52HR M56
Size 1/3 A 1/3 sub-C 3/4 sub-C C 5/4 C
Open circuit Voltage 3.2 V 3.2 V 3.2 V 3.2 V 3.2 V
Nominal voltage 3.0 V 3.0 V 3.0 V 3.0 V 3.0 V
Nominal capacity (drain; 2,0 V cut off) 0.5 Ah (4.5 mA) 0.9 Ah (40 mA) 1.6 Ah (80 mA) 4.8 Ah (150 mA) 6.7 Ah (150 mA)
Max. recom. Cont. Current 0.3 A 0.4 A 0.3 A 2.0 A 2.5 A
Operating temp. Range -40/+70°C '-40/+70°C '-40/+70°C '-40/+70°C '-40/+70°C
Outside diameter max 16.7 mm 22.8 mm 22.5 mm 26.2 mm 26.2 mm
Height max 16.6 mm 17.3 mm 32.0 mm 51.5 mm 61.5 mm
Weight 8 g 15 g 24 g 59 g 70 g
Transport Non restricted Non restricted Non restricted Class 9 Class 9

LM spiral cells M19 LM33550 M20 M20HR M24HR M62
Size "Short" D D D D DD "Big" DD
Open circuit Voltage 3.2 V 3.2 V 3.2 V 3.2 V 3.2 V 3.2 V
Nominal voltage 3.0 V 3.0 V 3.0 V 3.0 V 3.0 V 3.0 V
Nominal capacity (drain; 2,0 V cut off) 10.3 Ah (450 mA) 13.0 Ah (250 mA) 12.6 Ah (150 mA) 11.5 Ah (0.5 A) 20.0 Ah (2.0 A) 33.0 Ah (1.6 A)
Max. recom. Cont. Current 3.0 A 4.0 A 3.5 A 4.0 A 6.0 A 6.0 A
Operating temp. Range -40/+70°C -40/+70°C -40/+70°C -40/+70°C -40/+70°C -40/+70°C
Outside diameter max 33.5 mm 34.2 mm 34.2 mm 34.2 mm 33.5 mm 42.5 mm
Height max 58.5 mm 61.4 mm 61.5 mm 61.5 mm 110.5 mm 133.0 mm
Weight 105 g 120 g 117 g 117 g 201 g 355 g
Transport Class 9 Class 9 Class 9 Class 9 Class 9 Class 9
