American Power Design APD电源产品资料：
输出电压 |
输入电压 |
资料下载 |
| A5 |
 |
5.0 W |
24Vdc to 200Vdc |
9-36Vdc, 20-60Vdc, 36-72Vdc |
FHV |
A5.PDF |
| A15 |
15.0 W |
24Vdc to 200Vdc |
9-36Vdc, 20-60Vdc, 36-72Vdc |
FHV |
A15.PDF |
| A50 |
50.0 W |
24Vdc to 200Vdc |
10-20Vdc, 18-36Vdc, 36-72Vdc |
FHV |
A50.PDF |
| A100 |
100.0 W |
48Vdc to 200Vdc |
10-20Vdc, 18-36Vdc, 36-72Vdc |
FHV |
A100.PDF |
|

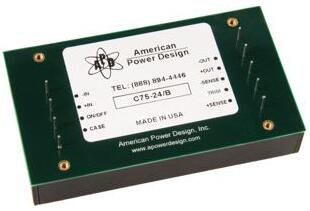

| C75 |
 |
75.0 W |
3Vdc to 28Vdc |
10-20Vdc, 18-36Vdc, 20-60Vdc, 36-72Vdc |
FLV |
C75.PDF |
| D150 |
 |
150.0 W |
3Vdc to 28Vdc |
10-20Vdc, 18-36Vdc, 20-60Vdc, 36-72Vdc |
FLV |
D150.PDF |
| E1 |
 |
1.0 W |
-8000Vdc to 8000Vdc |
11.5V-16Vdc |
PRGM |
E1.PDF |
| E3 |
3.0 W |
-8000Vdc to 8000Vdc |
11.5V-16Vdc |
PRGM |
E3.PDF |
|
| F1 |
 |
1.0 W |
-2000Vdc to 2000Vdc |
5Vdc, 12Vdc |
PRGM |
F1.PDF |
| G10 |
 |
10.0 W |
-20000Vdc to 20000Vdc |
22.8V-28.8Vdc |
PRGM |
G10.PDF |
|
| H10 |
 |
10.0 W |
24Vdc to 1000Vdc |
5-15Vdc, 9-36Vdc, 20-60Vdc |
FHV |
H10.PDF |
| H30 |
30.0 W |
24Vdc to 1000Vdc |
9-36Vdc, 20-60Vdc |
FHV |
H30.PDF |
| H50 |
50.0 W |
24Vdc to 1000Vdc |
9-36Vdc, 20-60Vdc |
FHV |
H50.PDF |
| H150 |
150.0 W |
24Vdc to 1000Vdc |
18-36Vdc, 20-60Vdc |
FHV |
H150.PDF |
| J05 |
 |
0.5 W |
-2000Vdc to 2000Vdc |
0V-5Vdc, 0V-12Vdc, 0V-24Vdc |
PROP |
J05.PDF |
| J3 |
3.0 W |
-6000Vdc to 6000Vdc |
0V-5Vdc, 0V-12Vdc, 0V-24Vdc |
PROP |
J3.PDF |
| J5 |
5.0 W |
-3000Vdc to 6000Vdc |
0V-12Vdc |
PROP |
J5.PDF |
| J10 |
10.0 W |
-3000Vdc to 6000Vdc |
0V-12Vdc , 0V-15Vdc
J10-200/A/S/Y
|
PROP |
J10.PDF |
|
| L1 |
 |
1.0 W |
24Vdc to 500Vdc |
5Vdc, 12Vdc, 24Vdc, 48Vdc |
FHV |
L1.PDF |
| L3 |
3.0 W |
24Vdc to 500Vdc |
5Vdc, 12Vdc, 24Vdc, 48Vdc |
FHV |
L3.PDF |
| M5 |
|
5.0 W |
24Vdc to 1000Vdc |
10-20Vdc, 18-36Vdc |
PRGM |
M5.PDF |
| M10 |
10.0 W |
24Vdc to 1000Vdc |
10-20Vdc, 18-36Vdc |
PRGM |
M10.PDF |
| M30 |
30.0 W |
48Vdc to 1000Vdc |
10-20Vdc, 18-36Vdc |
PRGM |
M30.PDF |
|
| P1 |
 |
1.0 W |
-3000Vdc to 6000Vdc |
0-12Vdc |
PROP |
P1.PDF |
| P2 |
2.0 W |
-3000Vdc to 6000Vdc |
0-12Vdc |
PROP |
P2.PDF |

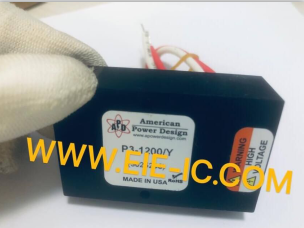

| P3 |
3.0 W |
-3000Vdc to 12000Vdc |
0-12Vdc, 0-15Vdc |
PROP |
P3.PDF |
| P5 |
5.0 W |
100Vdc to 4000Vdc |
4-12Vdc |
PROP |
P5.PDF |
| P10 |
10.0 W |
100Vdc to 8000Vdc |
4-12Vdc |
PROP |
P10.PDF |
| Q2 |
 |
2.0 W |
-5000Vdc to 5000Vdc |
24V-30Vdc |
PRGM |
Q2.PDF |
| Q4 |
4.0 W |
-5000Vdc to 5000Vdc |
24V-30Vdc |
PRGM |
Q4.PDF |
|
| S1 |
 |
1.0 W |
50Vdc to 500Vdc |
9-36Vdc |
FHV |
S1.PDF |
| S3 |
3.0 W |
50Vdc to 500Vdc |
9-36Vdc |
FHV |
S3.PDF |
| S5 |
5.0 W |
24Vdc to 1000Vdc |
9-36Vdc, 20-60Vdc, 36-72Vdc |
FHV |
S5.PDF |
| S10 |
10.0 W |
24Vdc to 1000Vdc |
9-36Vdc, 20-60Vdc, 36-72Vdc

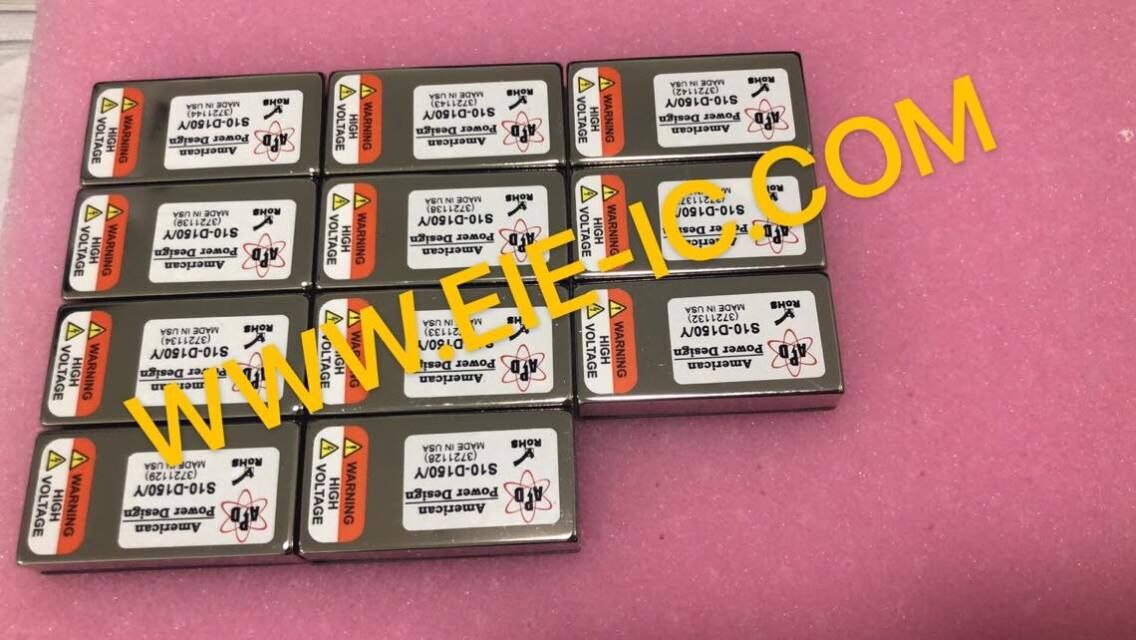

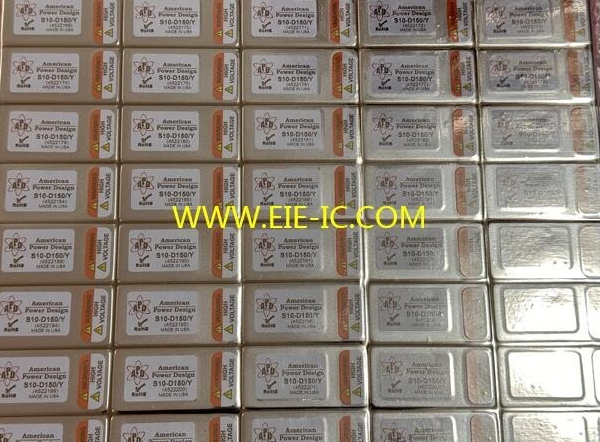

S10-D150/Y
|
FHV |
S10.PDF |
| S20 |
20.0 W |
24Vdc to 1000Vdc |
9-36Vdc, 20-60Vdc, 36-72Vdc |
FHV |
S20.PDF |
| S30 |
30.0 W |
24Vdc to 1000Vdc |
9-36Vdc, 20-60Vdc, 36-72Vdc |
FHV |
S30.PDF |
| X10 |
 |
10.0 W |
24Vdc to 1000Vdc |
9-36Vdc, 20-60Vdc, 36-72Vdc |
FHV |
X10.PDF |
| X30 |
30.0 W |
24Vdc to 1000Vdc |
9-36Vdc, 20-60Vdc, 36-72Vdc |
FHV |
X30.PDF |
| X50 |
50.0 W |
48Vdc to 1000Vdc |
9-36Vdc, 20-60Vdc, 36-72Vdc |
FHV |
X50.PDF |
| X150 |
150.0 W |
48Vdc to 1000Vdc |
18-36Vdc, 20-60Vdc, 36-72Vdc |
FHV |
X150.PDF |
|
